Impact Doors Quote - Manufactured from PVC & Rubber Sheet

High performance coloured impact doors

Our combination of stainless steel hinges, highest quality PVC panels and impact resistant coloured PVC outer panel provides a cost effective solution to corporate identity or area segregation.

Visiflex doors are easy to install and use. We are able to provide a wide range of coloured panels to achieve a cost effective, aesthetically pleasing solution. Used frequently to denote high and low risk operational segregation and to promote corporate identity.

• Application Suitability: Frequently used within the supermarkets, coldstore and cleanroom industries and are ideal for use on all commercial openings where there is pedestrian or light powered traffic and where screening or colour denotation is required.
• Specifications: Coloured, impact resistant PVC outer panels, with clear PVC sheet inners available in both ambient and low temperature grades, Stainless steel hinges "Grade 304".
• Structural Opening Sizes: Opening size of up to 1500mm w x 2100mm h.
• Traffic type: Pedestrian / light powered traffic.
• Traffic Volume: Light to Medium.
• Environmental Considerations: Internal only.

Offering the following benefits:

• Enhance energy savings through temperature regulation - the low thermal conductivity of flexible PVC leads to thermal energy savings and reduced carbon footprint
• Hands free accessibility through doorways - opening with minimum force and closing automatically
• Labour savings on installation compared to other impact door systems
• Long life and durability

Insulated clear vision impact doors.

Our combination of stainless steel hinges and heavy duty insulated door panels, with a clear vision PVC panel, provide a cost effective, energy saving, thermal barrier.

Thermoflex doors are easy to install and use. The adjustable polished stainless steel hinges provide a corrosion free system that support energy saving insulated panels.

Each insulated panel is fitted with freezer grade PVC vision window. The insulated panels are manufactured from blue heavy duty PVC and are insulated with 2 layers of thinsulate material.

• Application Suitability: Frequently used within the coldstore and refrigeration industries and are ideal for use on openings that require a thermal barrier door system, where there is pedestrian or light powered traffic.
• Specifications: Heavy duty insulated door panels, Clear PVC sheet in low temperature grade, Stainless steel hinges "Grade 304"
• Structural Opening Sizes: Opening size of up to 1500mm w x 2100mm h.
• Traffic type: Pedestrian / light powered traffic
• Traffic Volume: Light to Medium
• Environmental Considerations: Internal only

Offering the following benefits:

• Enhance energy savings through temperature regulation - the low thermal conductivity of flexible PVC leads to thermal energy savings and reduced carbon footprints
• Hands free accessibility through doorways - opening with minimum force and closing automatically
• Labour savings on installation compared to other impact door systems
• Long life and durability

EnviroFlex

The simple solution impact door.

Used extensively within supermarket, retail, restaurant and commercial environments this lightweight door opens easily with minimal resistance.

180 degree swing hardware requires minimal maintenance and is a commercial aesthetically pleasing door system. It provides years of durable, dependable operation and offers excellent value for money.

Application Suitability: Frequently used within the food, coldstore and cleanroom industries and ideal for use on openings with pedestrian, hand or light powered traffic.

Specifications: Manufactured from high quality extruded aluminium section, that has smooth lines and no projections. Panel fixings concealed within the framework

Structural Opening Sizes: Openings up to 2400mm wide x 2438mm high

Panel Type: 7mm PVC only

Traffic type: Pedestrian / light powered traffic

Traffic Volume: Light to Medium

Environmental Considerations: Internal only

CombiFlex

The combination solution impact door.

Used extensively within most industrial and commercial environments dependent on panel type.

This Multi-functional door opens easily with minimal resistance and the full range of panel options ensures it can be used effectively in most applications. It provides years of durable, dependable operation and offers excellent value for money.

Application Suitability: Used within all commercial and industrial applications dependent on panel type.

Specifications: Manufactured from 43mm o/d heavy wall mild steel steam tube, with a horizontal gusset plate and vertical mild steel flats to hold the panel in position.

Structural Opening Sizes: openings up to 2400mm wide x 2600mm high.

Panel Type: All PanelFlex options

Traffic type: Pedestrian / powered traffic

Traffic Volume: Light to Heavy dependent on panel choice.

Environmental Considerations: Ideal for internal openings but can be used on semi-external / external openings dependent on site conditions.

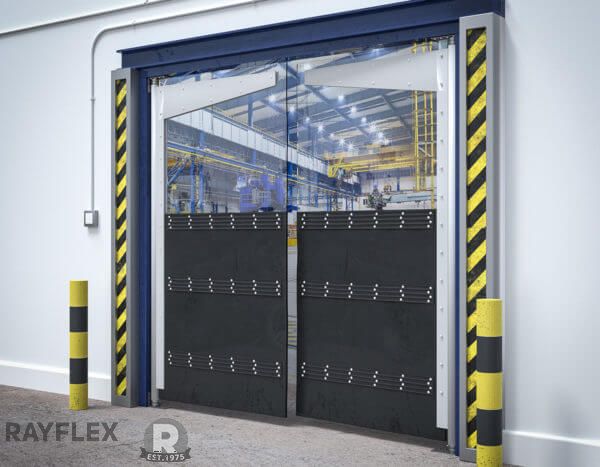

TradeFlex

The heavy duty solution impact door.

Offering a more robust solution to CombiFlex and EnviroFlex this door system is used extensively within warehousing, manufacturing industries and postal sorting offices, where larger openings are common.

This heavy duty door opens easily with minimal resistance and provides years of durable, dependable operation and offers excellent value for money.

Application Suitability: Used within all warehousing, manufacturing industries and postal sorting offices.

Specifications: Manufactured from 60mm o/d heavy wall mild steel steam tube, with a horizontal gusset plate and vertical mild steel flats to hold the panel in position. NB. On openings above 2600mm wide the triangular gusset plates will be replaced by horizontal top tubes.

Structural Opening Sizes: openings up to 3000mm wide x 3350mm high.

Panel Type: Duoflex or Duoflex Combi.

Traffic type: Heavy Duty Pedestrian and powered traffic.

Traffic Volume: Heavy dependent on panel choice.

Environmental Considerations: Suitable for semi-external/external openings dependent on site conditions.

ForceFlex

The external heavy duty impact door solution.

Offering the most robust solution for external openings, with heavy duty use and highly powered traffic.

Ideal for large openings on warehousing across industry, this door system will stand up to all external environmental elements and still provide a durable, reliable door that can be used for years to come.

Application Suitability: Externally use within all warehousing and manufacturing industries.

Specifications: Manufactured from 60mm o/d heavy wall mild steel steam tube with a horizontal top tube, vertical mild steel flats and a corner gusset plate to hold the panels in position. Many extras are available to increase the specification on the door framework and panels. I.e. Horizontal spring unit mechanisms, dome disc protection studs, wearpads, increased overlap, larger clamping flats… Please note, on doors below 2600mm wide the horizontal top tubes will be replaced by triangular horizontal gusset plates.

Structural Opening Sizes: Openings up to 4000mm wide x 4000mm high.

Panel Type: Duoflex or Duoflex Combi.

Traffic type: Heavy duty powered traffic.

Traffic Volume: Heavy use.

Environmental Considerations: Heavy duty external applications.

PanelFlex 1 - EcoFlex

EcoFlex, all clear PVC 5mm or 7mm thick, suitable for light traffic.

The most economical option available and allow maximum visibility.

PanelFlex 2 - DuoFlex

5mm or 7mm thick PVC sheet top section, welded to a 5mm or 7mm thick black or grey PVC bottom section.

PanelFlex 3 - DuoFlex Combi

5mm or 7mm thick PVC sheet central section, welded to a 5mm or 7mm thick black or grey PVC top and bottom section.
Creates a sandwich effect on the panel;

1. Measure the opening height at each side of the opening.

2. Measure the width of the opening at the top, middle and bottom.

3. For single panel doors, choose which side, left or right, on which you require the framework to be fitted.

OUR EXTENSIVE RANGE OF IMPACT / CRASH DOORS ARE THE MOST PRACTICAL AND ECONOMICAL SOLUTION TO HEAT LOSS AND NOISE POLLUTION IN THE WORKPLACE.

Our doors provide a simple, low-cost, 180 degree (two-way) hands free access solution to reducing energy waste in the workplace.

They simply segregate two areas, where ease of passage is essential without affecting speed of movement.

1- EASE OF OPERATION AND ENVIRONMENTAL CONTROL WILL SAVE YOU MONEY EVERYDAY.

Electric, hydraulic or pneumatic operators that use electric energy to drive pumps and motors are expensive, complex to install, require regular maintenance and are costly to repair. Our impact doors are manually operated, less expensive than motorized alternatives, faster and easier to install and maintain.

They actively control air movement, moisture, dust and dirt movement through openings, ensuring that the temperature and humidity in your specific application is regulated.

Heating bills are greatly reduced saving you money and reducing your ever important carbon footprint.

2 - INCREASED OPERATIONAL PRODUCTIVITY FROM FAST AND EFFICIENT, TWO-WAY MOVEMENT THROUGH A DOOR OPENING.

Our Impact doors allow 180 degree / two way ease of movement of personnel and materials between two areas.

They actively facilitate hands free access, easily opening in both directions when pushed or when impacted by a hand, pallet or forklift trucks, automatically returning to its original closed position after passage.

3 - VISUAL SEPARATION, SOUND CONTAINMENT, SAFETY AND SECURITY.

Our Impact doors provide separation between the sales floor and store room, food preparation and cold storage area, office to the warehouse, customer seating area to the kitchen or in any opening where you need to hide the clutter or reduce the noise from your backroom operations.

Our impact doors create a physical and psychological barrier that will restrict access by customers, suppliers or employees to areas requiring security.

Protecting the image and secrecy requirements of company and providing a safe environment for you, your employees and customers.

IMPACT DOOR CHOICE IS BASED ON INDUSTRY USE, STRUCTURAL OPENING SIZE, TRAFFIC VOLUME AND TRAFFIC TYPE. PLEASE REVIEW EACH RAYFLEX RUBBER CATEGORY, LISTED CLEARLY FROM THE HOMEPAGE FOR DETAILED INFORMATION ON VARIOUS OPTIONS.

We offer an extensive range of doors which guarantees that we can cater for your specific requirements. Upon receipt of your specification we can ensure that we offer the most suitable impact door for your needs.

So that we can easily your requirements we need a small amount of help from you. Please ensure the following information is to hand:

What industry will the doors be used in?

In order to guarantee the correct specification of finish, what environment are the doors going into? Coldstore / cleanrooms, warehousing, manufacturing plants, retail units, supermarkets, food preparation areas, hospitals, pharmaceutical industries, postal sorting offices...

What type of area do you wish to segregate?

Office - warehouse, restaurant – kitchen area, operational areas – coldstores / cleanrooms...

What is the structural opening size?

Width and height in mm. A guide to accurate measurement is available here.

What are the fitting arrangements?

Standard fitting arrangements allow fitting to the underside of the lintel. Please state the composition of the lintel / floor, ie: timber, steel, concrete...

What volume of traffic will be going through the opening?

Personnel, pallet trucks, powered traffic or forklifts...

What usage will they receive?

Approximations only. For example 10 times, more than 100 time a day or somewhere in-between...

What are the environmental considerations?

Is insulation between cool or heated areas required? What temperature are the doors required to operate at? Will high moisture or humidity be present?

Where are the doors situated?

Location of the doors, internal / external, subject to wind pressures...

Are there any aesthetic considerations?

Do require a specific colour, and are there any corporate considerations? Once you have determined your application requirements please complete our online enquiry form with this required detailed. We will review your request and contact you to discuss available options.
